Upgrades II

Thingiverse thing # 1933288

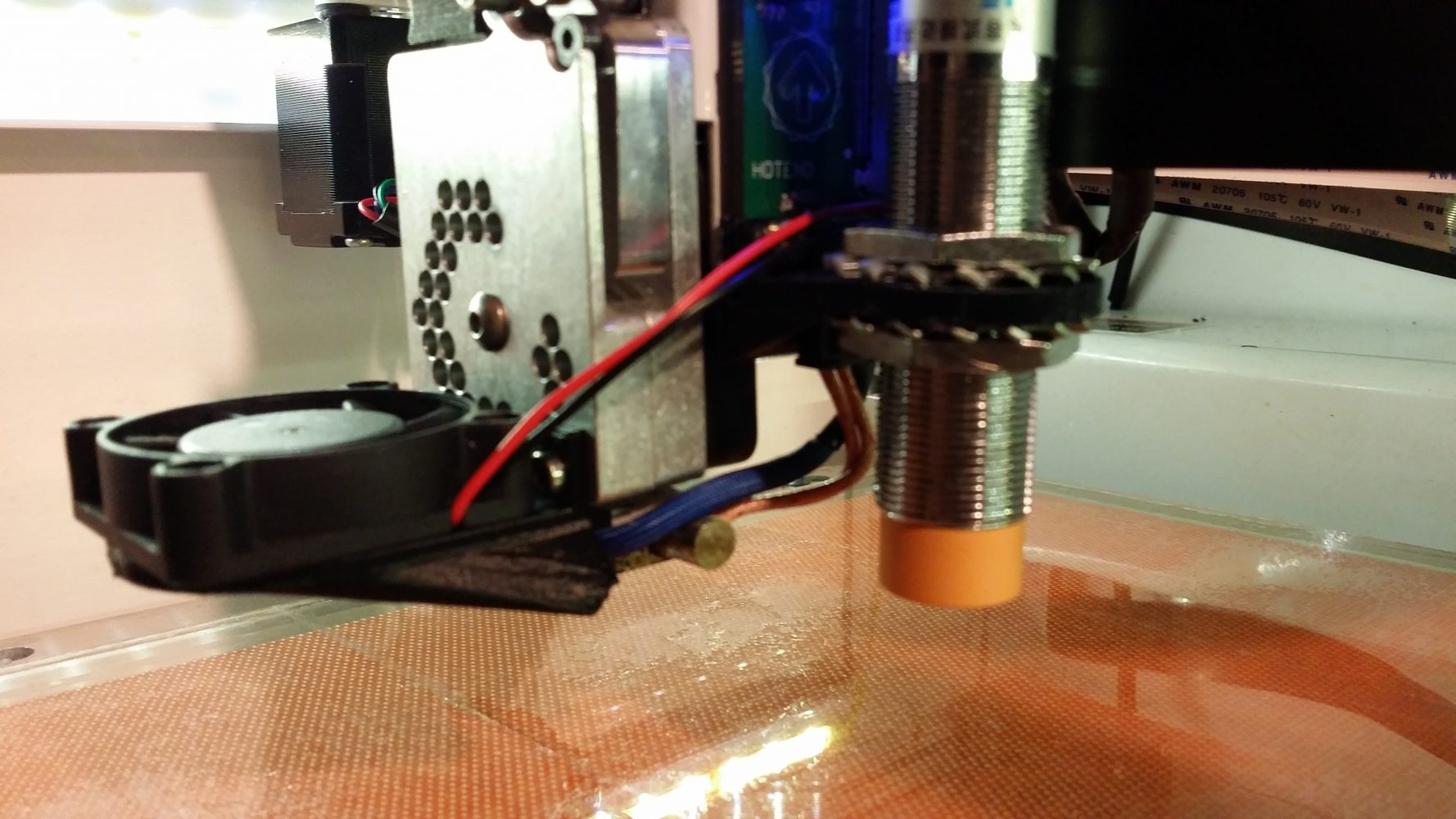

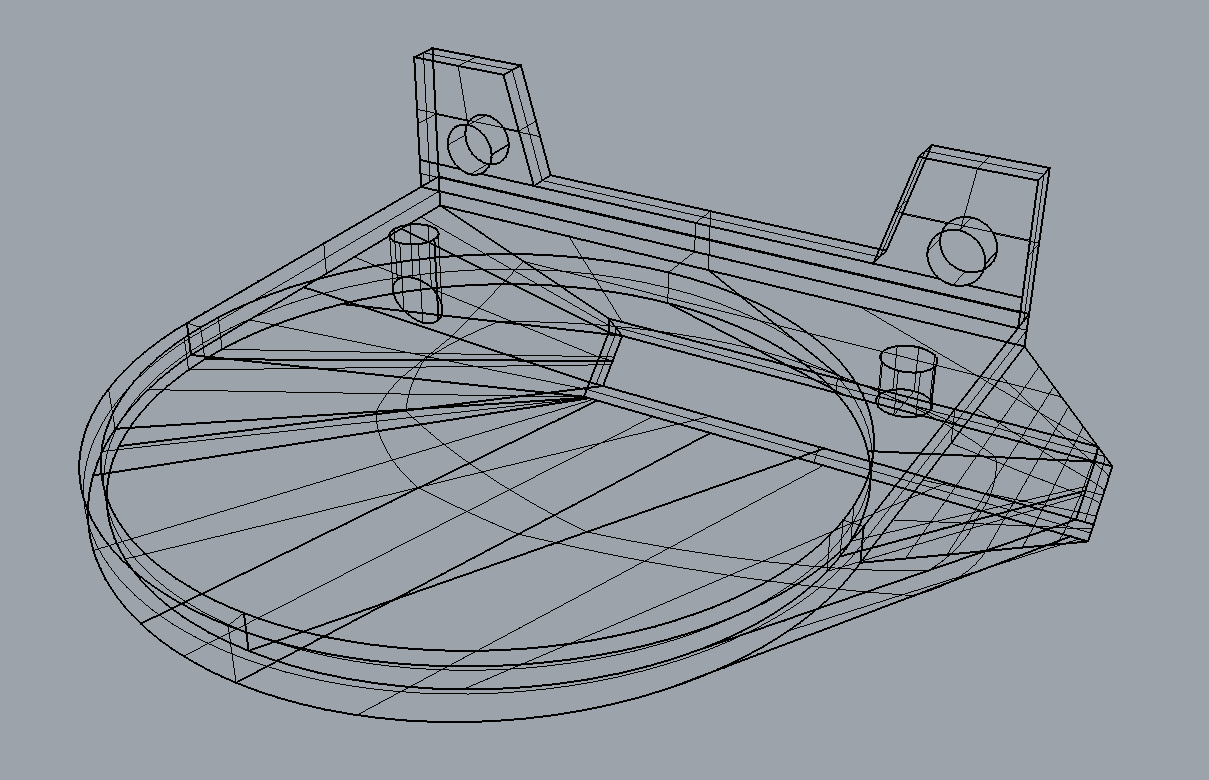

In an effort to improve cooling of prints and prevent curling/warping of parts, I also decided to design my own fan shroud that could direct air blown by the layer fan more precisely at the hotend where filament is being extruded onto the print. The images below show a wireframe view of my fan shroud design for Type A Machines Series 1 3D printers (top), and a photo of the fan shroud installed onto the machine (bottom)
