SSD Stackers (set of 4)

(3 customer reviews)

From: $8.00

Infinitely Stackable Design!
Click here for the new SSD Toppers!

Free Standard Shipping to USA

*VOLUME DISCOUNTS APPLIED AT CHECKOUT:
Add items to your shopping cart and view cart to see discounted total

Category:

Description

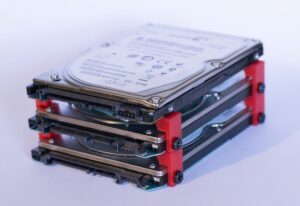

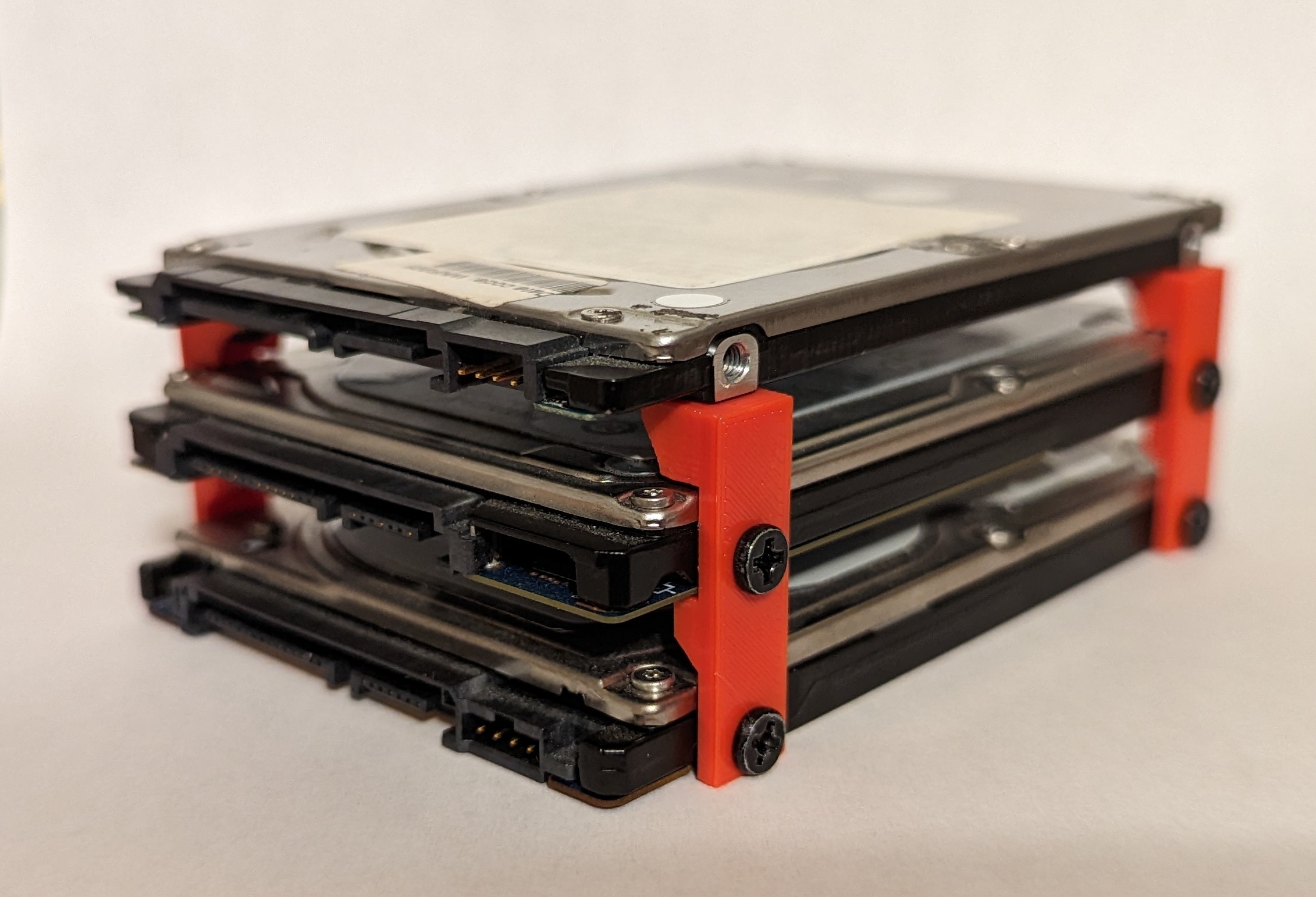

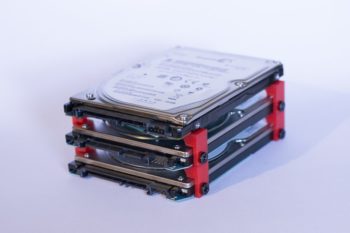

I designed SSD Stackers to allow for stacking and mounting of two or more 2.5″ drives (SSD or HDD) together, so they can then be mounted in desktop computer cases that have mounting holes for only a single drive (where there is still clearance for two 2.5″ drives).

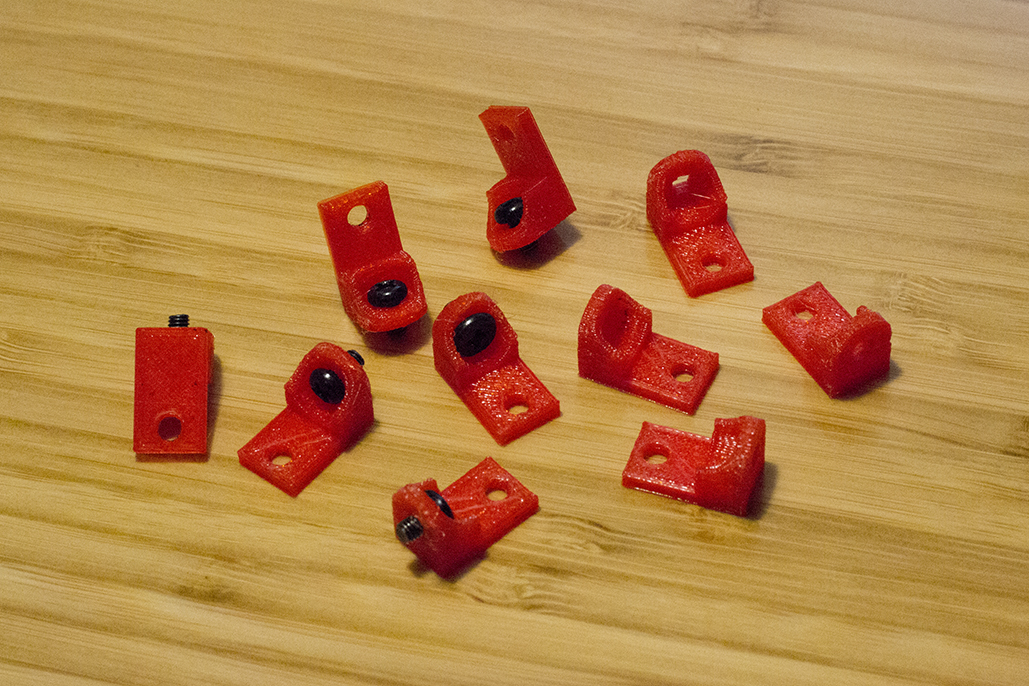

These are custom 3D printed to order, so please choose a size and color before placing your order, otherwise you will get the default “7 mm, 2×2, translucent neutral” colored stackers. Sold in sets of four (4) pieces, so you can start by stacking at least two drives together; Order additional sets for unlimited stacking! Also, please note that you do not necessarily have to use a 3×3/4×4/5×5 stacker to stack more than two drives together; You can stack 2, 3, 4, etc. drives with multiple sets of 2×2 stackers or you can mix and match any combination of stackers for infinite stacking possibilities. Alternatively, check out SSD Toppers which do not require the top drive to be mounted from the bottom (but are not infinitely stackable).

PRO TIP: Always start by mounting your top drive from the bottom, and stack from there.

As seen on Thingiverse: Thing #582781

*Volume discount applies only to multiple sets of the same color and size. Volume discount applied at checkout.

**All sales are final. No returns. No refunds.

Additional information

Weight 0.5 oz
Dimensions 1 × .8 × 0.4 in
Drive Size

7 mm, 9 mm
Color

Black, White, Neutral, Gray, Red, Green, Blue, Yellow, Orange, Brown, Dark Purple, Aqua Blue, Translucent Blue, Light Purple, Glow-in-the-Dark, Dark Brown, Translucent Purple, Dark Green, Mint, Light Blue, Translucent Orange, Pink, Dark Blue, Translucent Yellow, Translucent Green, Translucent Red, Peach, Magenta

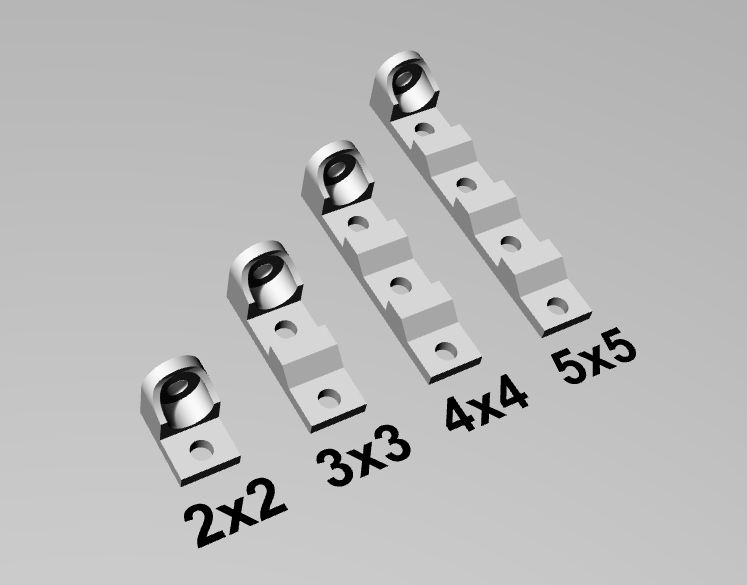

Multi-Stackers

2×2, 3×3, 4×4, 5×5

3 reviews for SSD Stackers (set of 4)

  1. Arthur Gonzales (verified owner) –

    Works perfectly in my small itx cases which I’m needing to stack a ton of SSD drives. Plan on buying more and expanding in a new NAS configuration.

  2. ROBERT KLOSTERKEMPER (verified owner) –

    This review is for the SSD Toppers but I can’t seem to leave a review for that item and so I’ll leave it here.

    I really like this idea. I have 3-SSDs in a stack and I use one set of Toppers as a set of feet for the bottom SSD to keep it from making direct contact with the floor of my PC case. I have a fan mounted in front of the stack for ventilation. One problem I had was in powering my SSDs. When I had these drives scattered around the inside of my case, I just connected them to power using a single ribbon SATA power cable. Well, binding the SSDs together left no room for the center drive to receive power that way. Even if I folded the power cable all the way there was not enough space to screw the drives together. So I sent away for some SATA power cable extensions. This was the perfect solution.

    When considering ordering, keep in mind that you’re going to use every little SSD screw in your random hardware jar. I have ordered some SSD screws from Amazon to get all the drives mounted properly. I only need a few more screws.

    Maybe Ryan G could offer SSD screws as an up-sell and maybe even SATA power extension cables. Just an idea. I also think a mounting plate for the first drive might be nice with an optional fan mounting bracket.

  3. Francis (verified owner) –

    Well designed product. Easy Install, with no need for longer screws.

Only logged in customers who have purchased this product may leave a review.

  • Are screws included with SSD Stackers and/or Toppers?

    No

  • When will my order ship?

    SSD Stacker and SSD Topper orders are generally printed and shipped within 24 hours of placing your order.

  • What size screws do I need for SSD Stackers and/or Toppers

    Any standard size screws made for 2.5 inch drives should work.

  • Will you make a Stacker/Topper for 3.5 inch, 15mm thick, or other size hard drives?

    Not at this time, sorry 🙁

  • What is the total height when using Stackers/Toppers?

    Your total stack height will depend on the thickness of your top drive. The rest of your stack will be approximately 12mm per drive when using 7mm thick drives or approximately 14mm per drive when using 9mm thick drives.

    To get a better idea of the dimensions of your stack you can multiply 12mm or 14mm by your total number of drives minus 1, then add the height of your top drive (usually either 7mm or 9mm).

    Example: 5 stacked drives would result in roughly 65mm total height for the 9mm 5×5 Stackers/Toppers, and approximately 55mm in height for the 7mm 5×5 Stackers/Toppers.
