Upgrades I

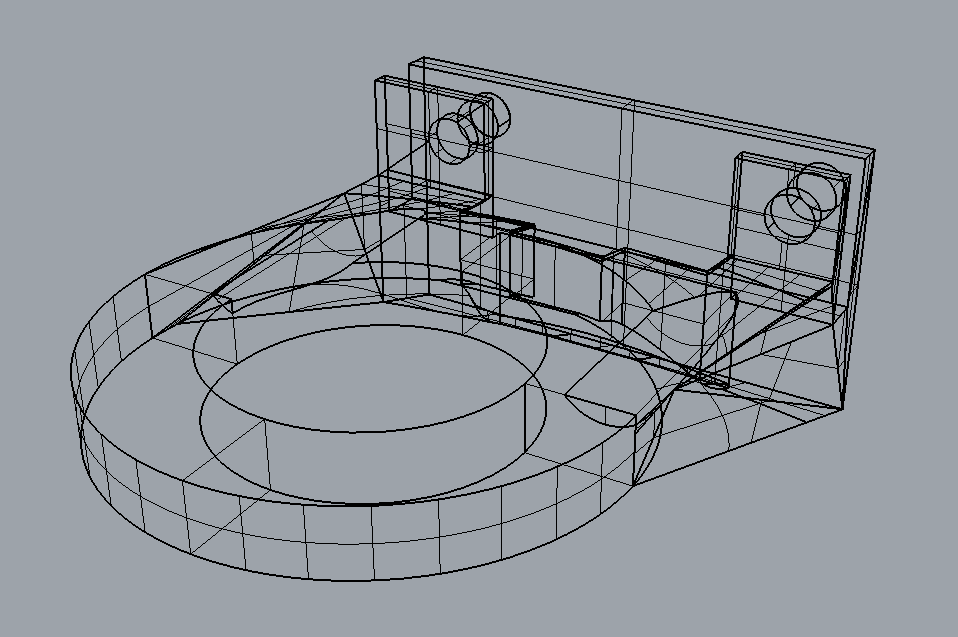

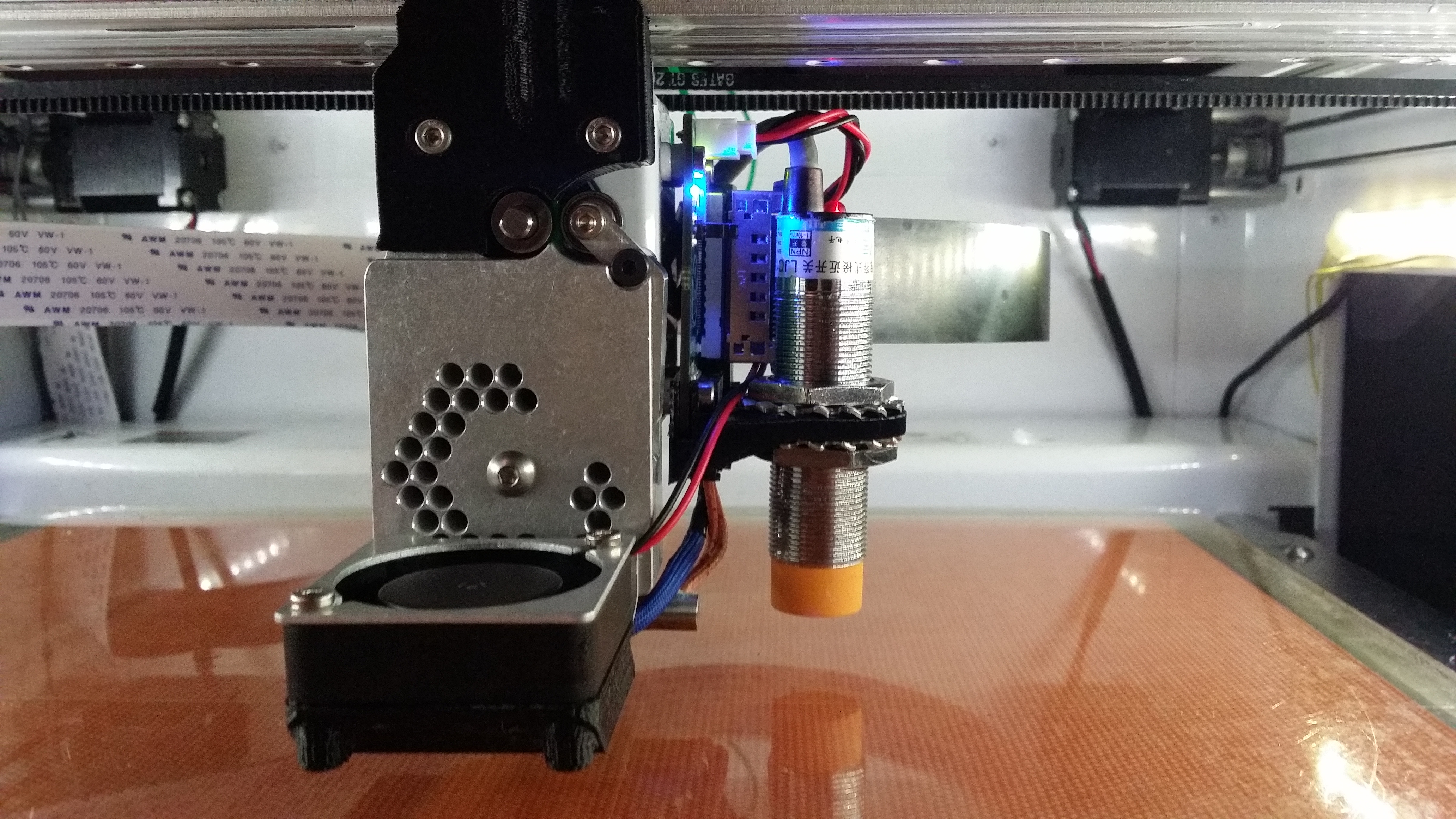

In an effort to improve the usability of one of my FDM 3D printers, I decided it was time to implement an “automatic bed-leveling system.”To do so, I needed to design a custom bracket to mount a proximity sensor to the print-head carriage. The images below show a wireframe view of my ABL Sensor Mount design for Type A Machines Series 1 3D printers (top), and a photo of the 3D printed bracket and sensor mounted to the machine (bottom).


Type A Machines Forum Link: http://forum.typeamachines.com/viewtopic.php?f=7&t=2676

Thingiverse: https://www.thingiverse.com/thing:1736589
